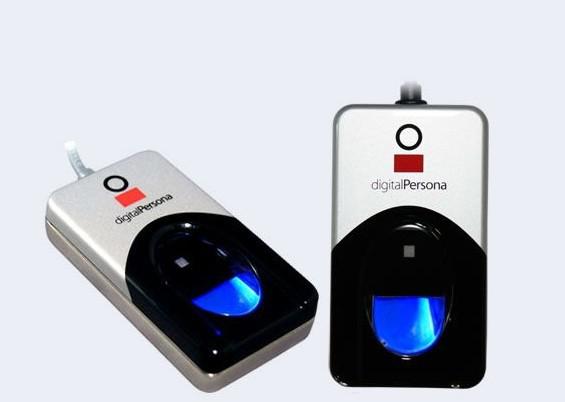

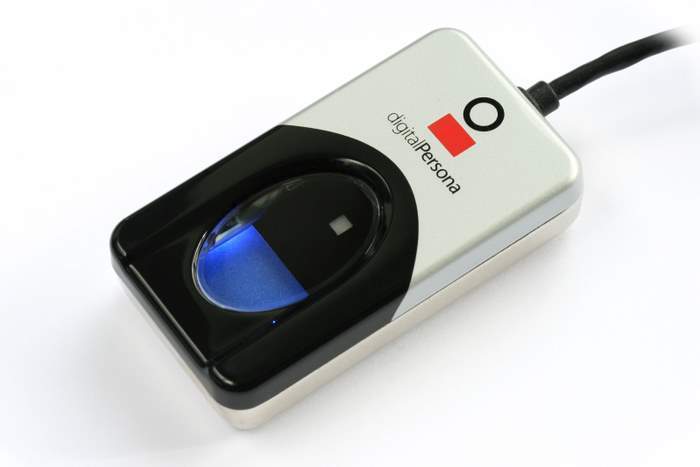

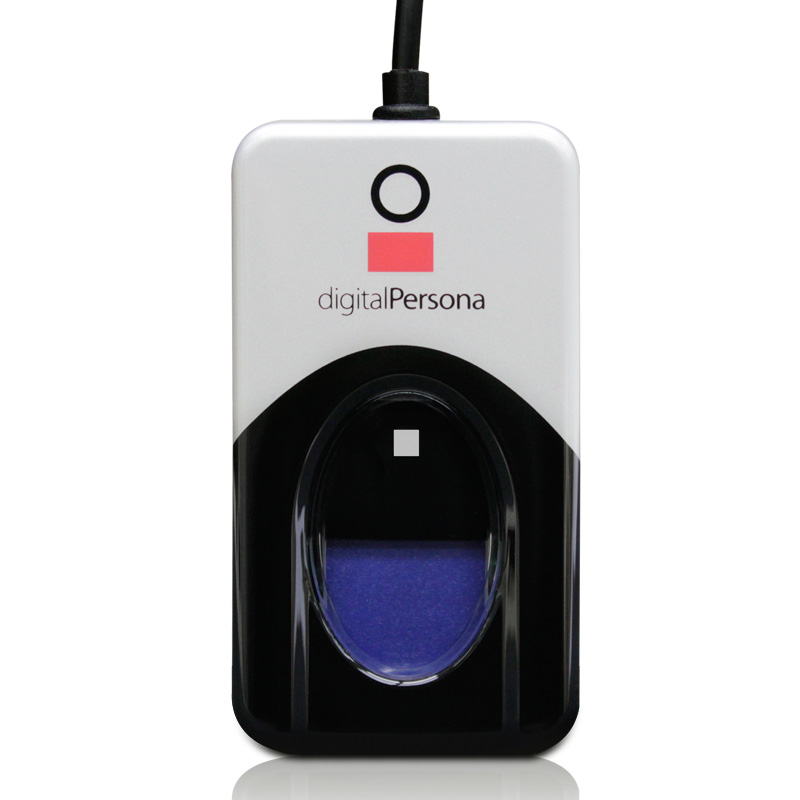

DigitalPersona 4500

HID DigitalPersona 4500 Fingerprint Reader | optical USB reader (formerly U.are.U 4500)

The DigitalPersona 4500 is the world's most widely deployed desktop optical fingerprint reader. Executive-class metal design for individual or shared use in offices and POS, 512 dpi image quality, large capture area, silicone-coated platen and on-board encryption. Windows Hello supported.

Key Features

  • Excellent optical image quality: 512 dpi, 8-bit, large capture area, good with dry, moist or rough fingers.
  • Silicone coating tolerates finger placement and rotation.
  • Fast auto capture and encryption in the device.
  • Red flash user feedback; durable metal case.
  • USB-A, Micro-B or USB-C cable, 20 or 183 cm.
  • DigitalPersona SDKs, HID authentication solutions, Windows Hello.

Specifications

TechnologyOptical
Resolution512 dpi, 8-bit
Capture area14.6 x 18.1 mm
Image formatsDigitalPersona, ISO 19794-4, ANSI/INCITS 381, raw, WSQ
InterfaceUSB 2.0 full speed
Power5 V USB; <100 mA scanning, <0.5 mA suspend
OSWindows, Linux, Android; Windows Hello
Dimensions / weight65 x 36 x 15.5 mm; 105 g
Operating temp.0 to +40 C, 20-80% RH
CertificationFCC Class B, CE, ICES, BSMI, MIC, USB, WHQL; REACH/WEEE/RoHS
Part numberPLT-04485

Specifications subject to the latest HID Global datasheet. Gauss Computer is the authorized HID biometrics distributor in Taiwan.
