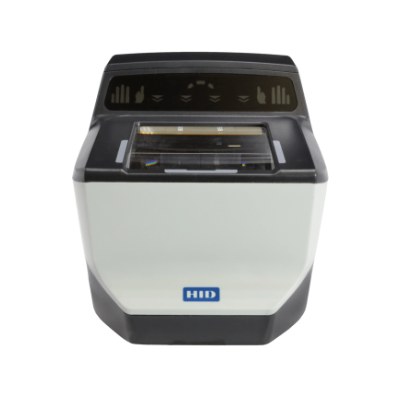

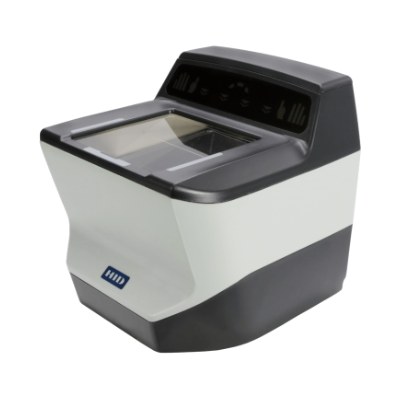

Guardian 200

HID Guardian 200 | FBI Appendix F certified FAP 60 tenprint scanner, flats and rolls

The HID Guardian 200 is the industry benchmark for reliable tenprint livescan capture. FBI Appendix F certified (FAP 60), it captures flat and rolled fingerprints from wet or dry fingers without recalibration, with illuminated guidance, intelligent capture and presentation attack detection (PAD).

Key Features

  • FBI Appendix F, FAP 60: 4-4-2 flats and rolls.
  • Wet and dry capture without pretreatment or recalibration.
  • Illuminated pictograms guide the user.
  • Auto-Capture, FlexFlats, FlexRolls with quality assurance.
  • Presentation Attack Detection.
  • USB powered, compact 152 x 152 x 155 mm, 1.5 kg.
  • Compatible with MOBS, LSMS, BioCore, L Scan Essentials SDK.

Specifications

Capture area81.3 x 83.8 mm (3.2 x 3.3 in)
Resolution500 ppi, 8-bit
Capture typesTenprint flats (4-4-2) and rolls
CertificationFBI Appendix F (FAP 60), UL, CE, RoHS, GS
Interface / powerUSB 2.0 high speed, USB powered
OSWindows 10/11; Ubuntu 14.0/16.04; Rocky Linux 8.4/8.6
SDKHID L Scan Essentials SDK 7.5+
Dimensions / weight152 x 152 x 155 mm; 1.5 kg
Operating temp.0 to +50 C

Specifications subject to the latest HID Global datasheet. Gauss Computer is the authorized HID biometrics distributor in Taiwan.
