EikonTouch TC510

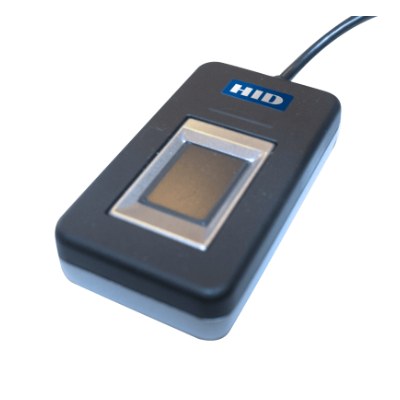

HID EikonTouch TC510 | capacitive silicon USB fingerprint reader for high-traffic use

The EikonTouch TC510 is a compact capacitive USB fingerprint reader built on the HID TouchChip sensor with Steelcoat protection, IP65 and 4 million touches, designed for POS and multi-user environments. Liveness detection (ISO 30107-3 Level 1), AES-256 encryption and on-board matching; Windows Hello supported.

Key Features

  • TouchChip capacitive silicon sensor: 508 dpi, 12.8 x 18 mm.
  • Steelcoat + IP65, min. 4 million touches.
  • PAD Level 1 liveness detection.
  • On-board processing: templates, matching, up to 100 stored; AES-256.
  • Ergonomic finger guide and LED feedback.
  • USB-A / Micro-B / USB-C cable; DigitalPersona SDK, Windows Hello.

Specifications

SensorCapacitive silicon, HID TouchChip TCS1S
Resolution508 dpi, 8-bit
Capture area12.8 x 18 mm (256 x 360 px)
InterfaceUSB 2.0 full speed
Power5 V USB; ~130 mA scanning, ~1 mA standby
OSWindows, Linux, Android; Windows Hello
SecurityISO/IEC 30107-3 Level 1 PAD, AES-256, 100 templates
Dimensions / weight63.5 x 35 x 14.2 mm; 124 g
Operating temp.-10 to +50 C, 5-95% RH
ProtectionIP65; Steelcoat
CertificationUL, FCC, CE, India UID STQC; REACH/WEEE/RoHS

Specifications subject to the latest HID Global datasheet. Gauss Computer is the authorized HID biometrics distributor in Taiwan.
