Lumidigm V-Series

HID Lumidigm V-Series USB Desktop Fingerprint Readers | the most secure fingerprint authentication

Lumidigm V-Series readers deliver HID's most secure fingerprint authentication: multispectral imaging, iBeta Level 2 certified presentation attack detection, FBI-certified encryption and active tamper protection that erases keys on intrusion. They read dry, dirty, damaged, oily, wet or aged fingers in sunlight, darkness, heat, cold, rain, snow or dust; the V371 adds 13.56 MHz card reading.

Key Features

  • Multispectral imaging for superior matching and liveness.
  • iBeta Level 2 PAD (ISO/IEC 30107-3).
  • Difficult fingers and harsh environments.
  • FBI-certified encryption; active tamper detection with key erasure.

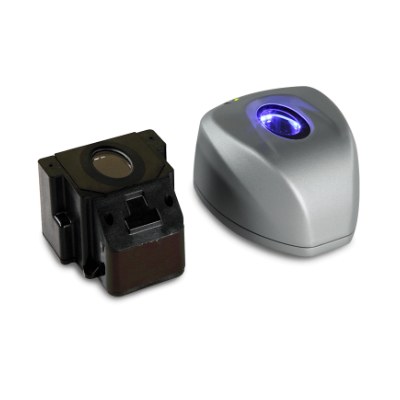

  • Models: V302 / V311 readers, V371 fingerprint + RFID (MIFARE Classic, DESFire EV1), V300 module.

Specifications

TechnologyOptical multispectral (MSI)
Resolution500 ppi
Capture areaapprox. 18 x 28 mm
LivenessiBeta Level 2 PAD
SecurityFBI-certified encryption, active tamper protection
InterfaceUSB 2.0
OSWindows, Linux x86-64
DimensionsV302/V311 approx. 83 x 102 x 60 mm; V371 approx. 79 x 124 x 63 mm
Operating temp.-10 to +50 C
Card (V371)13.56 MHz, MIFARE Classic, DESFire EV1
SDKHID Lumidigm SDK

Specifications subject to the latest HID Global datasheet. Gauss Computer is the authorized HID biometrics distributor in Taiwan.
