Guardian 45

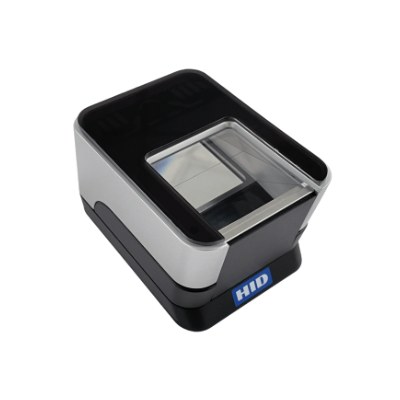

HID Guardian 45 | FBI Appendix F certified FAP 45 dual finger scanner

The HID Guardian 45 is a forensic-quality dual finger scanner for enrollment and verification at an accessible price. FBI Appendix F certified (FAP 45), it captures single or dual flats and single rolls regardless of skin tone or moisture, with LED guidance, auto capture and PAD. USB-C bus powered, 350 g.

Key Features

  • FBI Appendix F, FAP 45: 40.6 x 38.1 mm capture area.
  • Forensic quality: moisture discrimination optics, optional silicone membrane.
  • LED pictograms with quality indicators; auto capture at 15 FPS.
  • PAD.
  • 350 g, USB-C bus powered, -20 to 50 C.
  • SDK 8.2+ included.

Specifications

Capture area40.6 x 38.1 mm (1.6 x 1.5 in)
Resolution500 ppi, 8-bit
Capture typesSingle/dual flats, single rolls
CertificationFBI Appendix F (FAP 45), UL, FCC, CE, RoHS, REACH, NOM, UKCA, ISED
Interface / powerUSB 2.0 (USB-C), bus powered, <350 mA
OSWindows 10/11
SDKL Scan Essentials SDK 8.2+
Dimensions / weight71.9 x 111.8 x 61 mm; 350 g
Operating temp.-20 to +50 C
Part numbers920205-01 (membrane), 920205-00

Specifications subject to the latest HID Global datasheet. Gauss Computer is the authorized HID biometrics distributor in Taiwan.
